NOS-M102  悬臂梁称重模块

NOS-M102 悬臂梁称重模块

作者: 来源: 时间:2015-10-09 16:47 :27

一、Features   主要特点

The sensor adopts alloy steel structure
Can be directly installed on the ground or on the basis of structure
Using cantilever sensor; a support bolt, equipment to prevent capsizing
Suitable for platform scale, mixing station, storage irrigation and batching scale etc.

传感器采用合金钢结构
可直接安装在地上或者基础结构上
使用悬臂梁传感器;支撑螺栓,防止设备倾覆
适用于平台秤、搅拌站、仓储灌和配料秤等



二、Capacities   量程

500kg、1t、2t、5t、7.5t、10t、15t、20t


三、Specification  技术参数

Rated Output

额定输出

2.0mV/V ±0.1%

Zero Balance

零点平衡

±1% of rated output

Creep after 30 minutes

蠕变

±0.03% of rated output

Nonlinearity

非线性

±0.03% of rated output

Repeatability

重复性

±0.03% of rated output

Temp. effect on output

灵敏度温漂

0.002% of applied output/ºC

Temp. effect on zero

零点温漂

0.002% of applied output/ºC

Safe Temp. Range

可用温度范围

-10ºC to + 70ºC

Temp. Compensated

温度补偿范围

-10ºC to + 40ºC

Safe Overload

安全载荷

150%

Input Impedance

输入阻抗

387 ohm ± 20 ohm

Output Impedance

输出阻抗

350 ohm ± 5 ohm

Rated Excitation

推荐激励电压

10V DC/AC

Maximum Excitation

较大激励电压

15V DC/AC

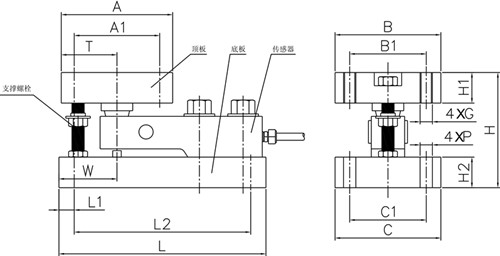

四、Dimensions     尺寸


量程

0.5-2 t

5-7.5 t

10 t

15-20 t

L

286

317.5

360

400

L1

32

32

32

25

L2

226

257

295

350

A

150

178

184

220

A1

124

146

152

170

B

128

152

154

220

B1

102

120

122

170

C

112

152

154

220

C1

80

102

106

170

H

102

130

168

213

H1

28

38

45

55

H2

23

30

45

55

T

99

102

108

115

W

96

99

105

115

G

M10

M16

M20

M24

P

Φ13

Φ17

Φ21

Φ26
