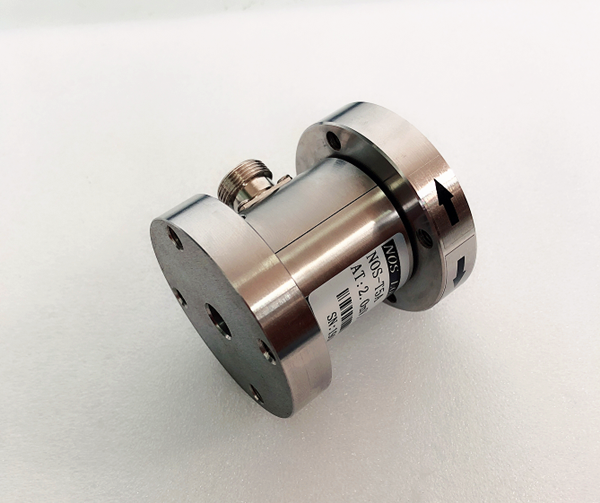

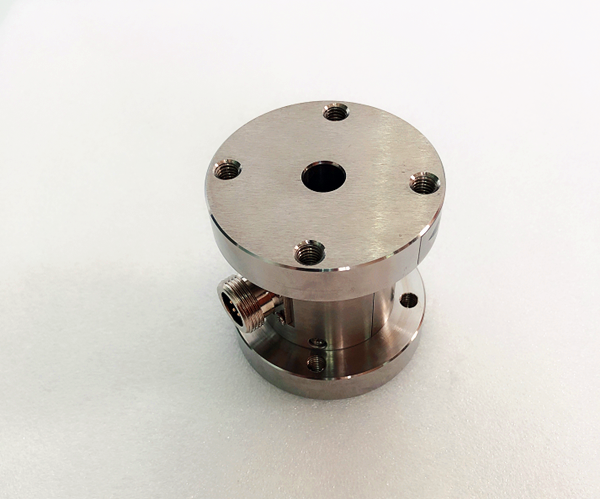

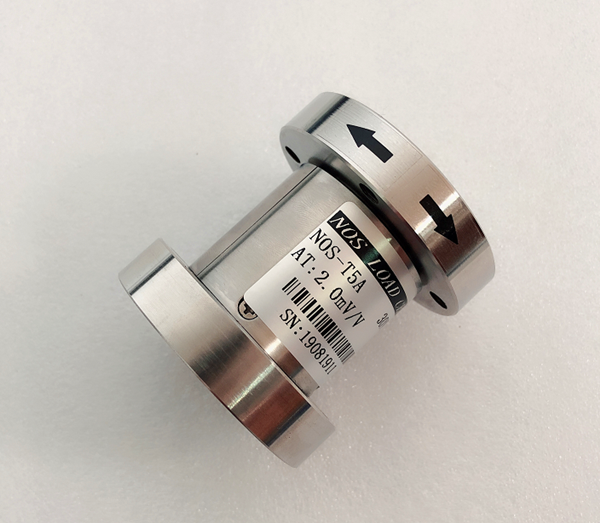

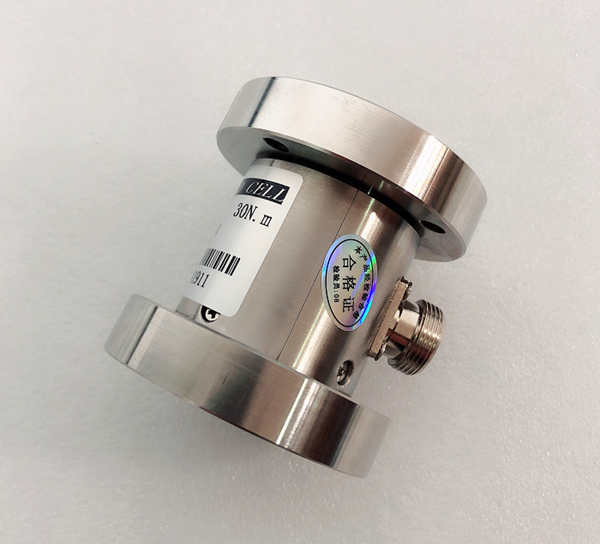

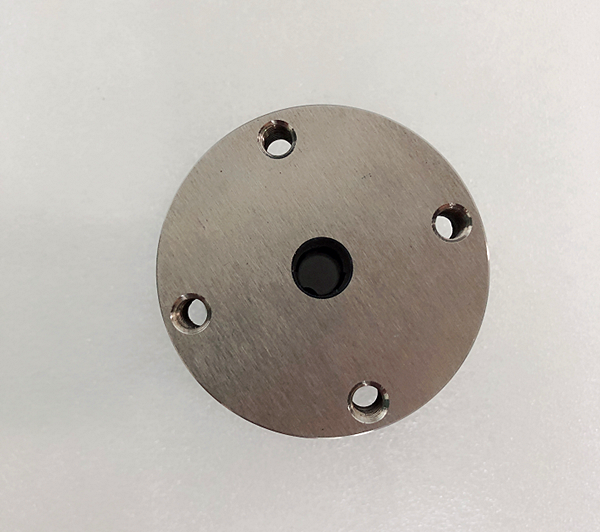

NOS-T5A 静态扭矩传感器

作者：来源：时间：2019-08-20 11:08 :38

一、Features 主要特点

Double Flanged Static Torque Sensor
High accuracy, good stability and strong anti-interference ability
High response frequency and convenient installation

Suitable for static and discontinuous rotation torsion measurement

Widely used in various torsion testers, torque wrenches and other static torsion measurement fields.

双法兰静态扭矩传感器

精度高、稳定性好、抗干扰能力强

响应频率高、安装便捷

适用于静态、非连续旋转的扭力值测量

广泛应用于各种扭力测试仪、扭矩扳手等静态扭力测量领域

二、Capacities 量程

10~1000N.m

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.5% of rated output
Nonlinearity	非线性	±0.5% of rated output
Hysteresis	滞后	±0.5% of rated output
Repeatability	重复性	±0.5% of rated output
Temp. effect on output	灵敏度温漂	≤0.05% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.05% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

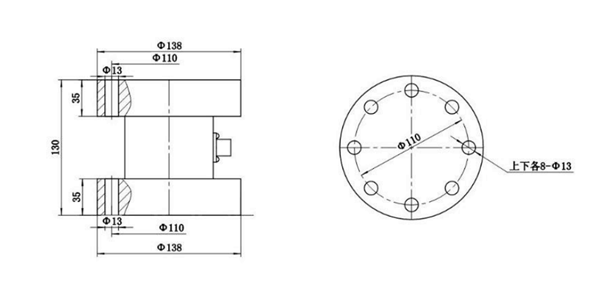

四、Dimensions 尺寸

扭矩传感器
