NOS-F305 膜合式称重传感器

作者：来源：时间：2015-09-09 11:13 :43

一、Features 主要特点

Membrane type weighing sensorl
Sensor elastic body made of alloy steel or stainless steel
Laser welding sealing, nickel plating
Waterproof, anti-corrosion, protection grade reaches IP66.

膜合式称重传感器
传感器弹性体采用合金钢或者不锈钢材质
激光焊接密封，表面镀镍
防水，防腐蚀，防护等级达到IP66

二、Capacities 量程

100kg、200kg、500kg、1t、2t、3t、5t、10t 、20t、30t

三、Specification 技术参数

Rated Output	额定输出	2.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.03% of rated output
Nonlinearity	非线性	±0.03% of rated output
Hysteresis	滞后	±0.03% of rated output
Repeatability	重复性	±0.03% of rated output
Temp. effect on output	灵敏度温漂	≤0.02% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.02% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

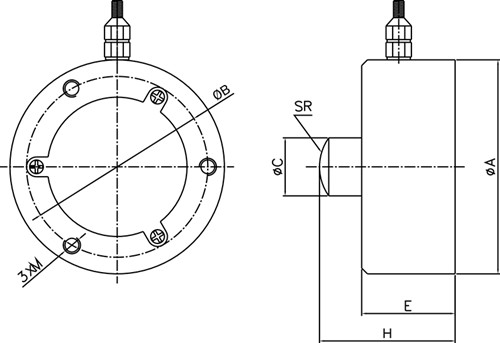

四、Dimensions 尺寸

量程	ФA	ФB	ФC	H	E	M	SR
0.3-1t	78	64	15	40	32	M6	40
2-10t	82	66	22	44	32	M8	50
15-30t	127	90	25	70	62	M10	60
