NOS-L101D 微型测力传感器

作者：来源：时间：2015-09-06 16:40 :39

一、Features 主要特点

Compact, easy to install
High measuring accuracy, is the preferred type of small range pull pressure sensor
Suitable for tension measurements, batching systems, industrial scales and package systems, etc

外形小巧，安装简便
测量精度高，是小量程拉压力测试传感器的优选型号
适用于材料试验机、配料秤、机电结合称和包装秤等

二、Capacities 量程

1kg、2kg、3kg、5kg、10kg、20kg、30kg、50kg、100kg

三、Specification 技术参数

Rated Output	额定输出	1.0mV/V ±0.1%
Zero Balance	零点平衡	±1% of rated output
Creep after 30 minutes	蠕变	±0.1% of rated output
Nonlinearity	非线性	±0.1% of rated output
Hysteresis	滞后	±0.1% of rated output
Repeatability	重复性	±0.1% of rated output
Temp. effect on output	灵敏度温漂	≤0.02% of applied output/ºC
Temp. effect on zero	零点温漂	≤0.02% of applied output/ºC
Safe Temp. Range	可用温度范围	-10ºC to + 70ºC
Temp. Compensated	温度补偿范围	-10ºC to + 40ºC
Safe Overload	安全载荷	150%
Input Impedance	输入阻抗	387 ohm ± 20 ohm
Output Impedance	输出阻抗	350 ohm ± 5 ohm
Rated Excitation	推荐激励电压	10V DC/AC
Maximum Excitation	较大激励电压	15V DC/AC

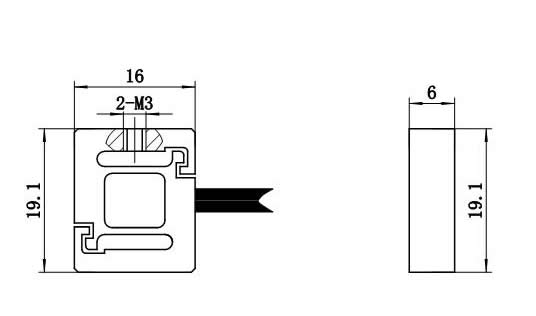

四、Dimensions 尺寸
