一 Features 主要特点
Made of stainless steel
Fully sealed structure, protection class IP68
Suitable for all kinds of environment and underwater force measurement
采用全不锈钢材质制造
全密封式结构，防护等级IP68
适用于各种环境恶劣或水下的力值测量场所
二、Capacities 量程
200kg、300kg、500kg、700Kg、1000kg
三、Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.5% of rated output |
|
Nonlinearity |
非线性 |
±0.5% of rated output |
|
Repeatability |
重复性 |
±0.5% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.05% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.05% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

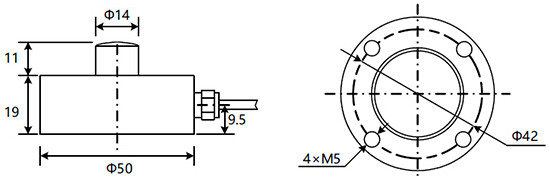

四、Dimensions 尺寸
