一 Features 主要特点
Alloy steel material, cylindrical structure
Wide range, strong anti overload abilityWidely used plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard button touch tester, etc.
Tension testing equipment and automation equipment field and testing area.
不锈钢材质、圆柱式结构
量程范围广、抗过载能力强广泛应用插拔力测试仪、铆钉机、焊接机、冷热压贴膜机、键盘按钮手感度测试仪等
拉压力测试仪器以及自动化设备领域和测试领域
二、Capacities 量程
0.2KN~10KN、20~200KN
三、Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.3% of rated output |
|
Nonlinearity |
非线性 |
±0.3% of rated output |
|
Repeatability |
重复性 |
±0.3% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.03% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.03% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

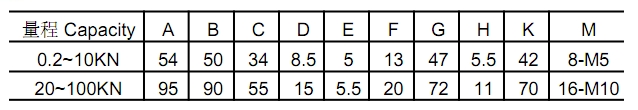

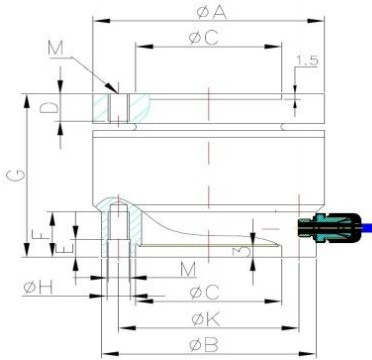

四、Dimensions 尺寸
