NOS-L103 柱式拉压力传感器
产品分类：称重传感器_测力传感器
一、Features 主要特点
This product is made of alloy steel material manufacturing.
Glue sealing treatment, nickel plated, waterproof, anti-corrosion, applicable to a variety of work environment.
The product is suitable for use in electronic hook scale, hopper scale and pulled to force or pressure to force measurement and other electronic weighing equipment.
本产品采用合金钢材质制造。
胶密封处理，表面镀镍，防水，防腐蚀，适用于多种工作环境。
该产品适用于电子吊钩秤、料斗秤及拉向力或压向力的测量等其它电子称重设备。
二、Capacities 量程
10t、20t、30t、50t、70t、100t、150t、200t
三、Specification 技术参数
|
Rated Output |
额定输出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零点平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕变 |
±0.05% of rated output |
|
Nonlinearity |
非线性 |
±0.05% of rated output |
|
Hysteresis |
滞后 |
±0.05% of rated output |
|
Repeatability |
重复性 |
±0.05% of rated output |
|
Temp. effect on output |
灵敏度温漂 |
≤0.02% of applied output/ºC |
|
Temp. effect on zero |
零点温漂 |
≤0.02% of applied output/ºC |
|
Safe Temp. Range |
可用温度范围 |
-10ºC to + 70ºC |
|
Temp. Compensated |
温度补偿范围 |
-10ºC to + 40ºC |
|
Safe Overload |
安全载荷 |
150% |
|
Input Impedance |
输入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
输出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推荐激励电压 |
10V DC/AC |
|
Maximum Excitation |
较大激励电压 |
15V DC/AC |

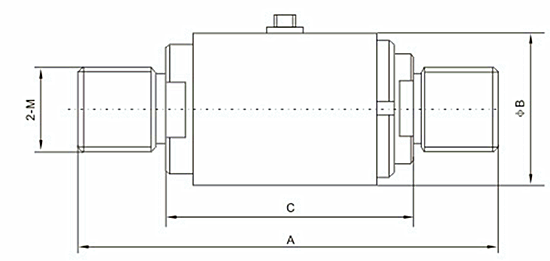

四、Dimensions 尺寸
|
量程 |
A |
ФB |
C |
M |
|
10-20t |
214 |
86 |
124 |
M42×4.5 |
|
30-50t |
276 |
106 |
156 |
M56×5.5 |
|
70-100t |
380 |
142 |
180 |
M90×6 |
|
150-200t |
500 |
175 |
220 |
M140×10 |
